  • Φ8-26 mm/Hydraulic Type Riveting Machine
  • Φ8-26 mm/Hydraulic Type Riveting Machine

    LF-288

    • On the work table, there is a device for up and down adjustmen. So it's very convenient.
    • Equipped with cooling system, so oil temperature will not rise and pressure will not reduce.
    • The design of spin head stroke is a two-speed one, so the time before loading spin head can be shortened and the production can be increased.

    Specification

    Max.output (kgf) Stroke of
    spin head
    (mm)
    Riveting capacity
    (Mild steel rivet)
    (mm)
    Distance between
    punch and table
    (mm)
    Depth of
    throat
    (mm)
    AC Motor
        rating        3 Phase

    8,200 0 - 55 Solid   8 - 26
    Hollow 8 - 40
    100-380 260 Spindle  3 HP 6 Pole Pump   3 Hp 4 Pole

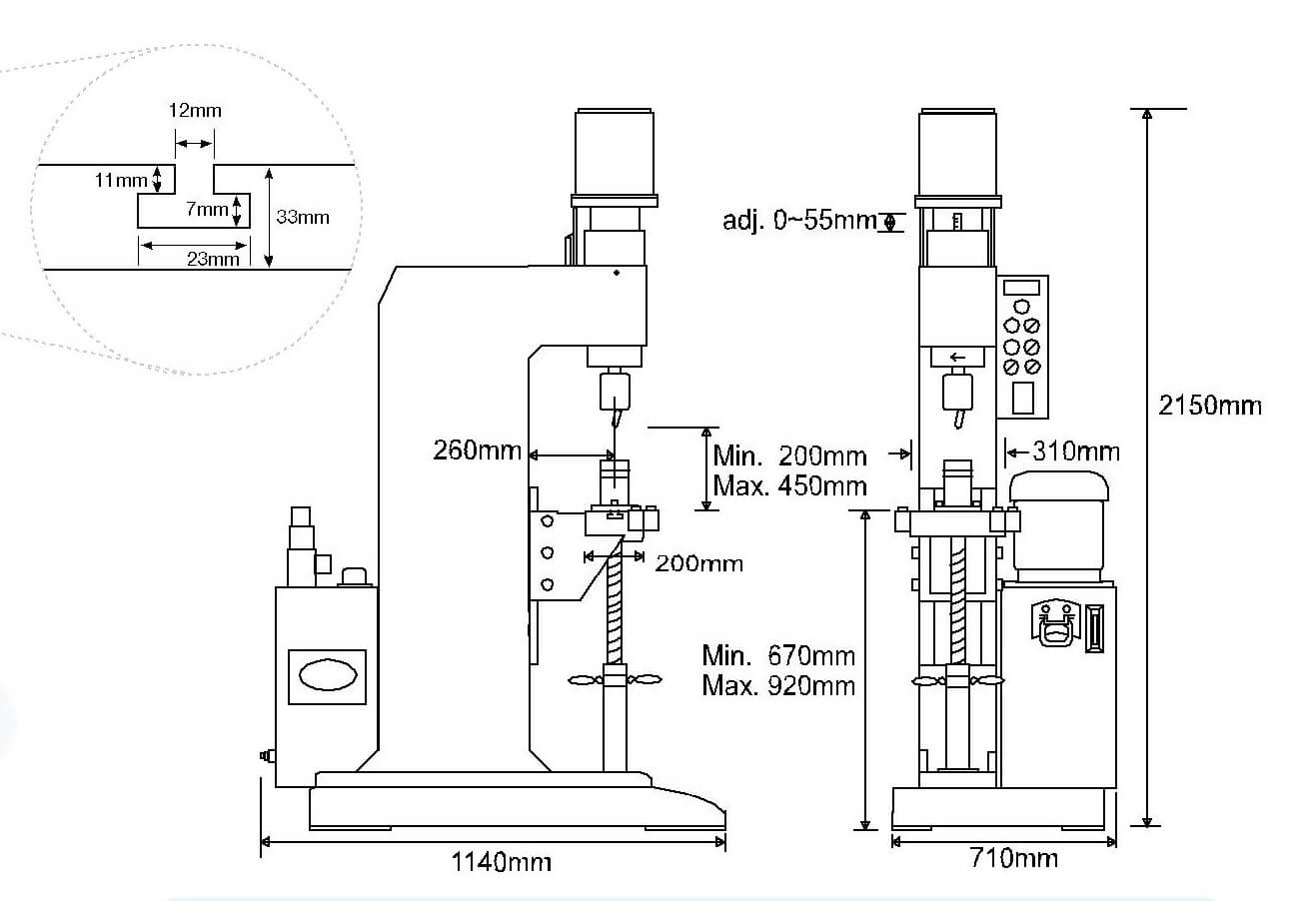

    Gauge pressure (kgf/cm2) Timer control (second) Working table LxW (mm) Dimension LxWxH (mm) N.W.(kgs) Wooden case LxWxH (mm) G.W. (kgs)
    5 - 110 0.5 - 6 300x200 1100x700x2150 1120 1200x800x2350 1220
    Principle of CLF Riveting Method

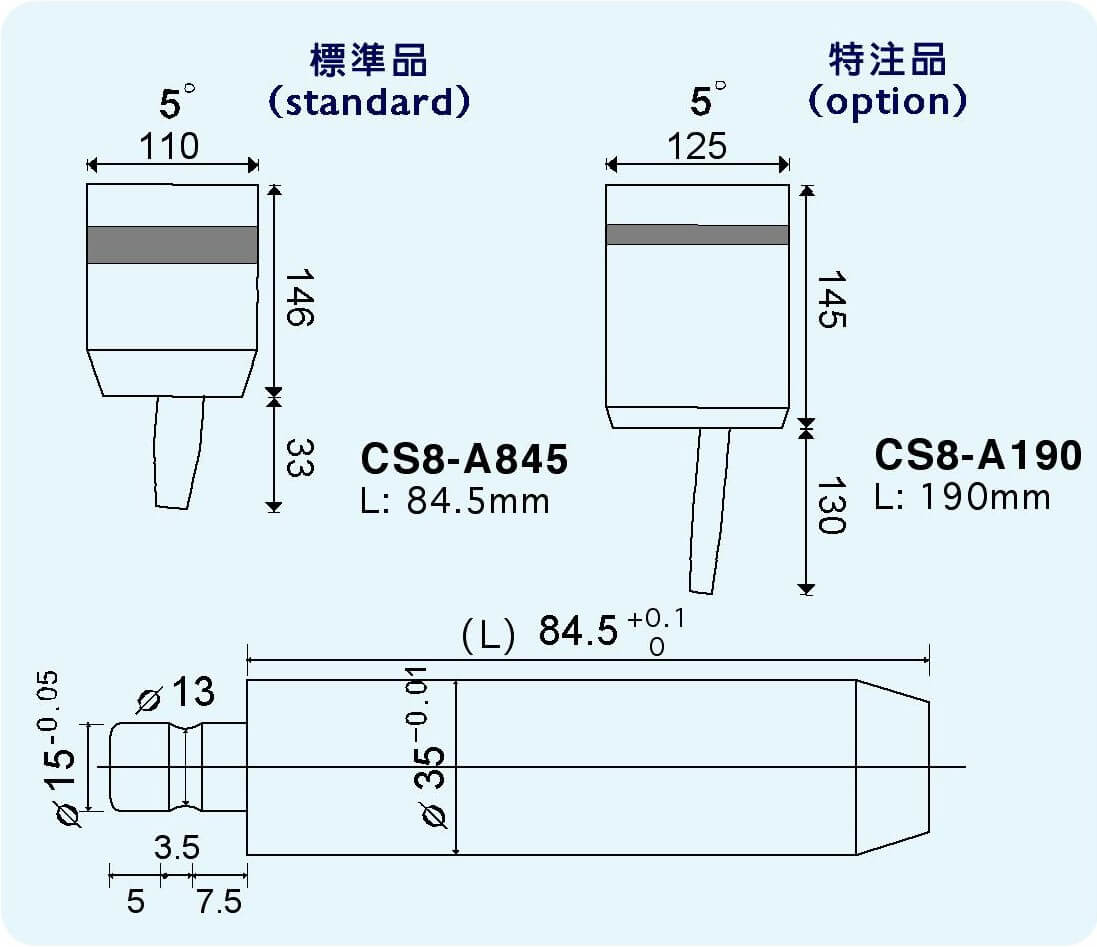

    Finished Shape of Rivet Heads and Punches
