  • Φ3-12 mm/Hydraulic Riveting Machine
  • Φ3-12 mm/Hydraulic Riveting Machine

    LF-168L

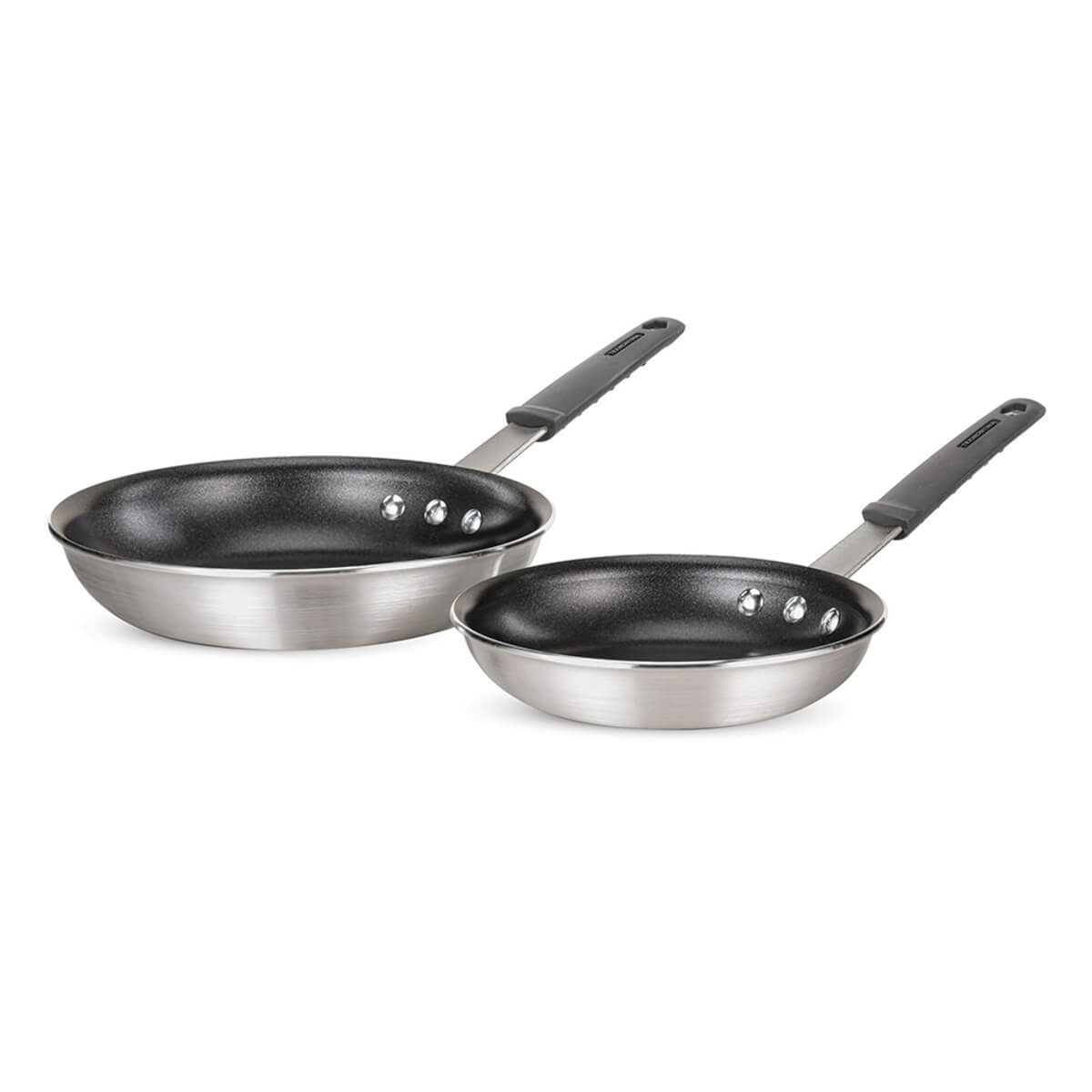

    • The ones that are suitable for pan handle riveting.

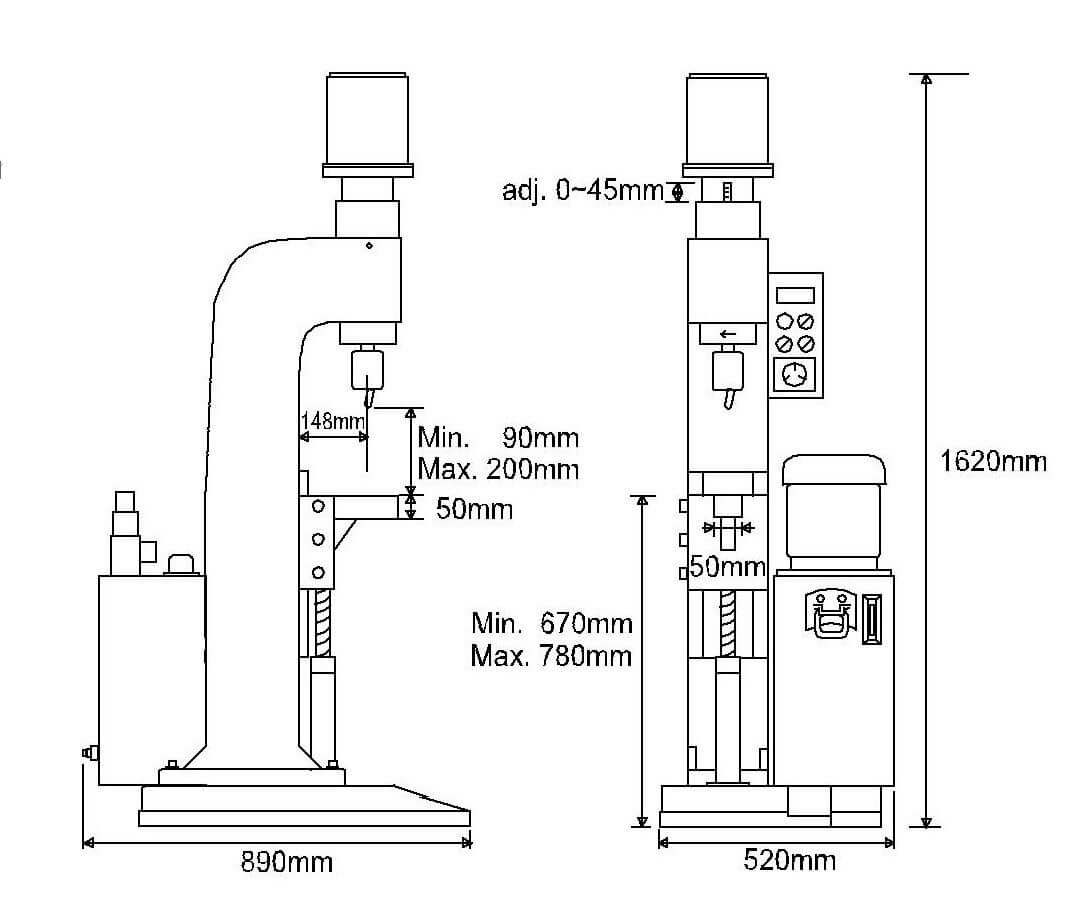

    Specification

    Max.output (kgf) Stroke of
    spin head
    (mm)
    Riveting capacity
    (Mild steel rivet)
    (mm)
    Distance between
    punch and table
    (mm)
    Depth of
    throat
    (mm)
    AC Motor
    rating
       4 Poles      3 Phase

    1980 0 - 45 Solid  3 - 12
    Hollow 2 - 20
    90 - 290 148 Spindle  1 HP Pump    2 Hp
    Gauge pressure (kgf/cm2) Timer control (second) Working table LxW (mm) Dimension LxWxH (mm) N.W.(kgs) Wooden case LxWxH (mm) G.W. (kgs)
    5 - 70 0.5 - 6   840x520x1620 355 940x620x1770 410
    Principle of CLF Riveting Method

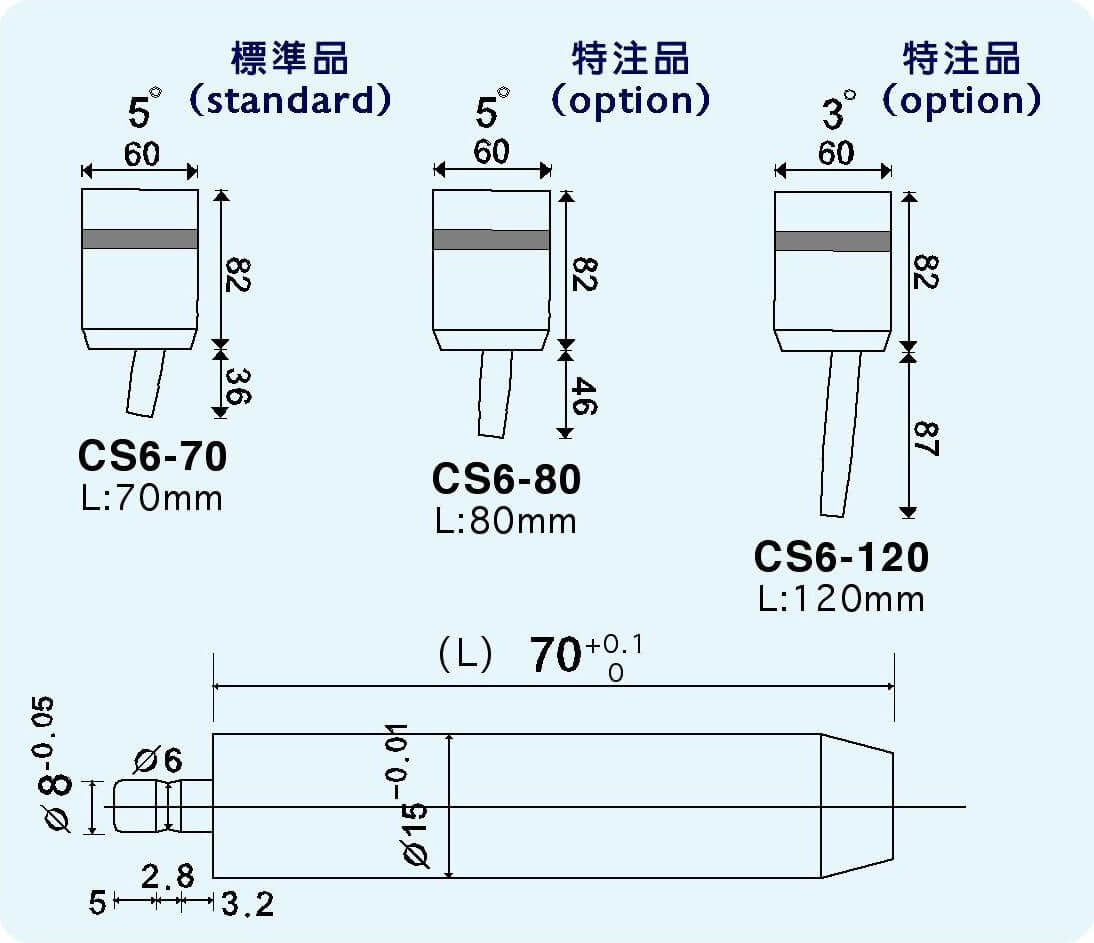

    Finished Shape of Rivet Heads and Punches
