  • Φ8-16 mm/Improved High Output Hydraulic Riveting Machine
  • Φ8-16 mm/Improved High Output Hydraulic Riveting Machine

    LF-162-6A

    • he machine is an improved one of LF-162-5A with stronger structure except keeping the original advantages and features.
    • The motor of main spindle is changed from 1 Hp 4 poles to 2 Hp 4 poles, therefore, the torque is bigger.
    • The bigger spin head reduce the wearing of bearings. the diameter of riveting punch is from ø15 mm to ø25 mm, while riveting, it can reduce the vibration of riveting punch

    Specification

    Max.output (kgf) Stroke of
    spin head
    (mm)
    Riveting capacity
    (Mild steel rivet)
    (mm)
    Distance between
    punch and table
    (mm)
    Depth of
    throat
    (mm)
    AC Motor
         rating
           3 Phase

    3100 0 - 45 Solid   8 - 16
    Hollow 8 - 30
    205 200 Spindle  2 HP 4 Pole Pump    2 Hp 4 Pole

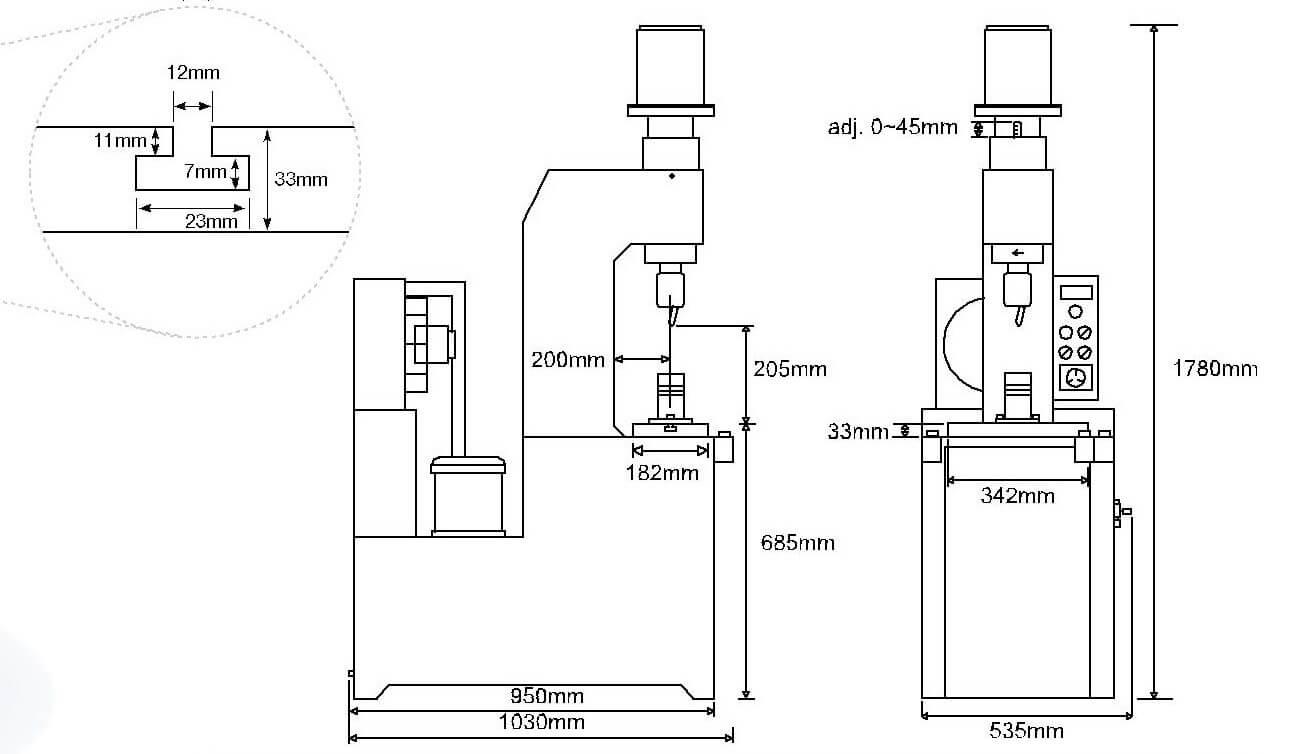

    Gauge pressure (kgf/cm2) Timer control (second) Working table LxW (mm) Dimension LxWxH (mm) N.W.(kgs) Wooden case LxWxH (mm) G.W. (kgs)
    10 - 110 0.5 - 6 342x182 830x520x1780 420 940x610x1950 475
    Principle of CLF Riveting Method
    Finished Shape of Rivet Heads and Punches
