  • Hydraulic Riveting Machine with Pneumatic Slide Unit
  • Hydraulic Riveting Machine with Pneumatic Slide Unit

    LF-168T

    • With cooling system

    Specification

    Max.output (kgf) Stroke of
    spin head
    (mm)
    Riveting capacity
    (Mild steel rivet)
    (mm)
    Distance between
    punch and table
    (mm)
    Depth of
    throat
    (mm)
    AC Motor
    rating
       4 Poles      3 Phase

    Slide Displacement (mm)

    1980 0 - 45 Solid  4 - 12
    Hollow 4 - 20
    40-170 148 Spindle  1 HP Pump    2 Hp 150
    Gauge pressure (kgf/cm2) Timer control (second) Working table LxW (mm) Dimension LxWxH (mm) N.W.(kgs) Wooden case LxWxH (mm) G.W. (kgs)
    5-70 0.5 - 6 250x162 850x780x1620 400 950x880x1770 460
    Principle of CLF Riveting Method

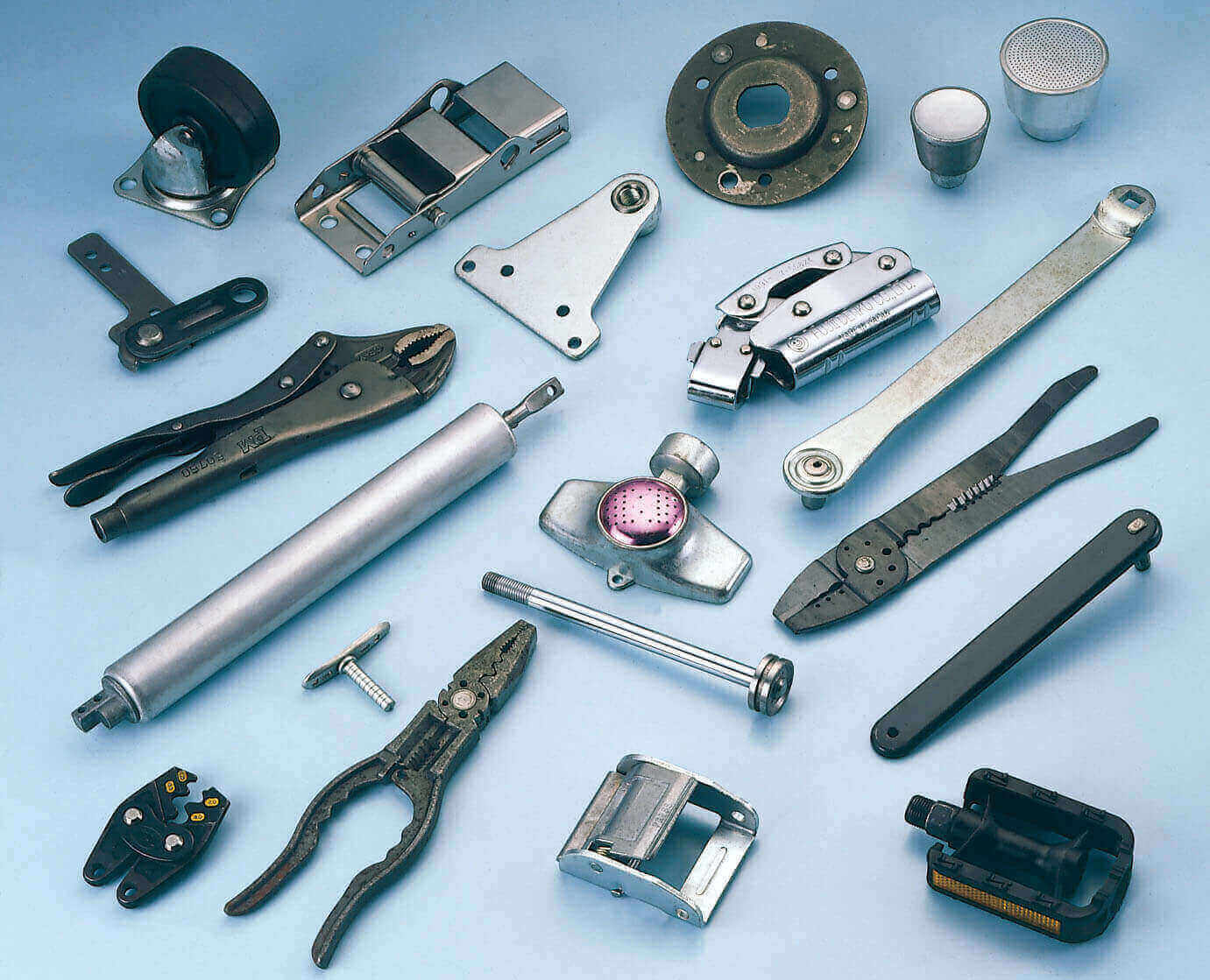

    Finished Shape of Rivet Heads and Punches
