  • Φ4-16 mm/ Hydraulic type of Orbital Riveting Machine
  • Φ4-16 mm/ Hydraulic type of Orbital Riveting Machine

    LF-168-6A

    • The worktable encloses the upper and lower adjustment device,it isconvenient to change:Suitable for workpiece,either long or short.
    • Strong riveting capacity up to Φ16mm.

    Specification

    Max.output (kgf) Stroke of
    spin head
    (mm)
    Riveting capacity
    (Mild steel rivet)
    (mm)
    Distance between
    punch and table
    (mm)
    Depth of
    throat
    (mm)
    AC Motor
    rating
       4 Poles      3 Phase

    3100 0-45 Solid 4 - 16
    Hollow 4 - 30
    170 - 405 200 Spindle  2 HP Pump    2 Hp

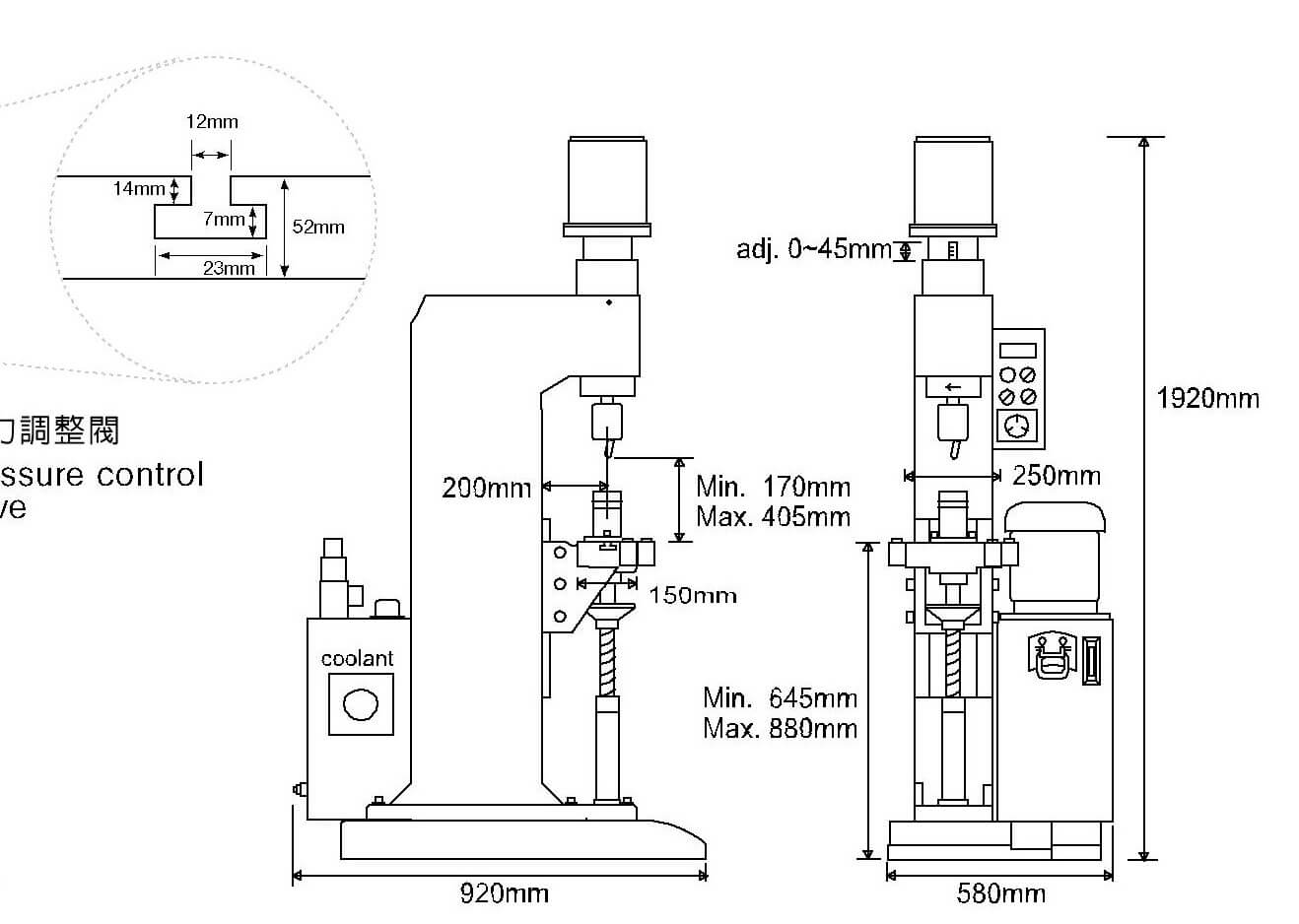

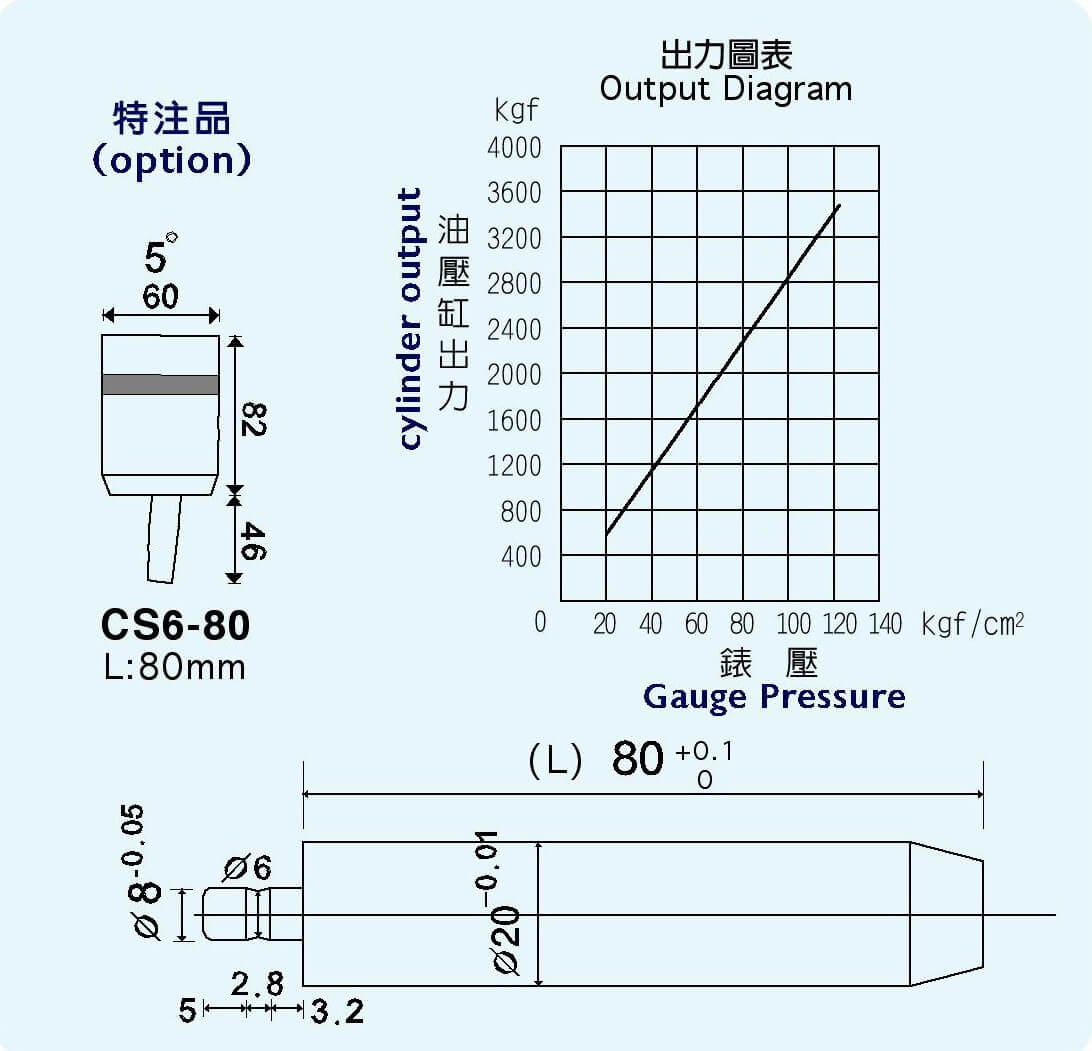

    Gauge pressure (kgf/cm2) Timer control (second) Working table LxW (mm) Dimension LxWxH (mm) N.W.(kgs) Wooden case LxWxH (mm) G.W. (kgs)
    10 - 110 0.5 - 6 250x150 920x580x1920 483 1010x670x2090 530
    Principle of CLF Riveting Method
    Finished Shape of Rivet Heads and Punches
