  • Long Throat Pneumatic Riveting Machine
  • Long Throat Pneumatic Riveting Machine

    LF-158H (Ø2-7mm)

    • Main body of steel plate, strong structure.
    • The throat reaches 400 mm profoundly,facilitate the special demand.
    • Max riveting capacity up to Ø 7mm rivets.

    Specification

    Max.output (kgf) Stroke of
    spin head
    (mm)
    Riveting capacity
    (Mild steel rivet)
    (mm)
    Distance between
    punch and table
    (mm)
    Depth of
    throat
    (mm)
    AC Motor
    rating
    4 poles (1720 rpm)
    Average air
    consumption
    in one cycle
    1170 20-40 Solid 2 - 7
    Hollow 2 - 12
    140 - 240 400 1  Hp
      3 phase
    6.8 NL
    (5kgf/cm2)

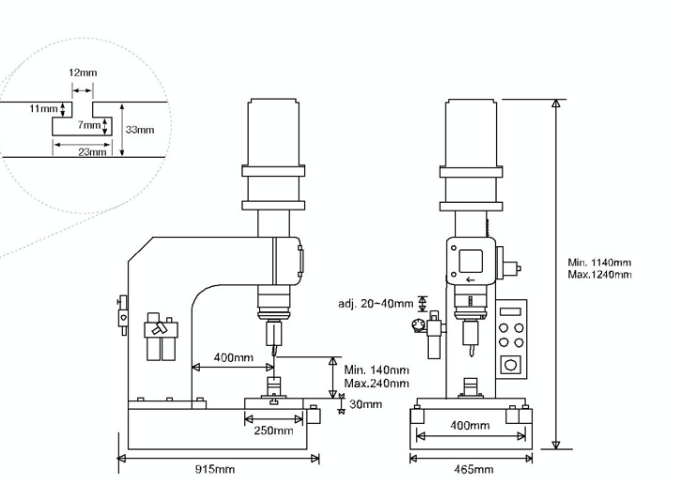

    Gauge pressure (kgf/cm2) Timer control (second) Working table LxW (mm) Dimension LxWxH (mm) N.W.(kgs) Wooden case LxWxH (mm) G.W. (kgs)
    2 - 7 0.5 - 6 400x250 915x465x1240 340 1005x555x1400 385
    Principle of CLF Riveting Method

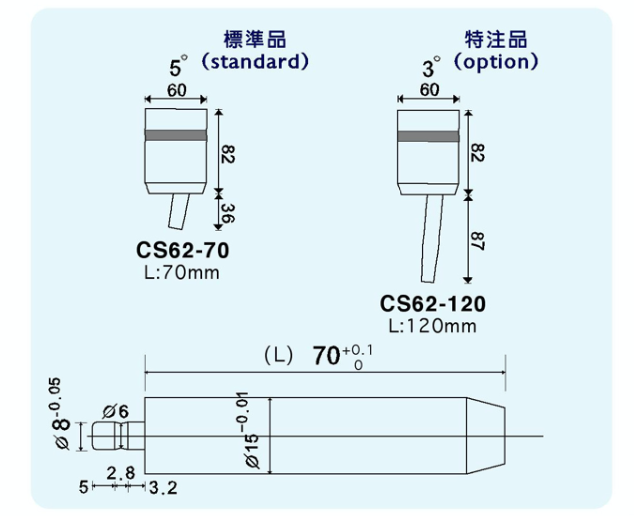

    Finished Shape of Rivet Heads and Punches
