  • Φ2-5 mm/Ground-Stand of Pneumatic Riveting Machine
  • Φ2-5 mm/Ground-Stand of Pneumatic Riveting Machine

    LF-128L

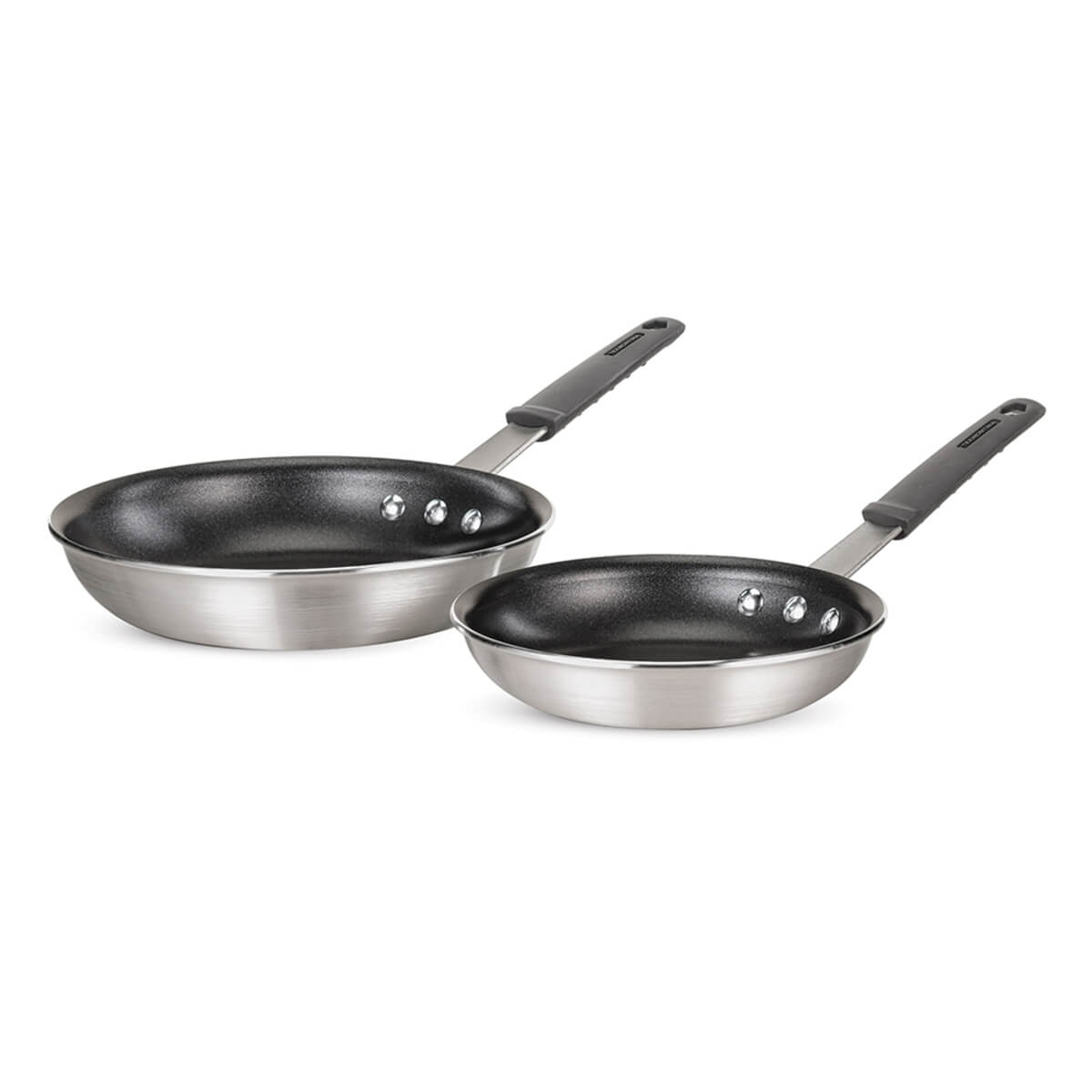

    • The ones that are suitable for pan handle riveting.
    • Can choose the single-phase voltage or three-phase voltage .
    • Max. riveting capacity up to ø5 mm rivets.

    Specification

    Max.output (kgf) Stroke of
    spin head
    (mm)
    Riveting capacity
    (Mild steel rivet)
    (mm)
    Distance between
    punch and table
    (mm)
    Depth of
    throat
    (mm)
    AC Motor
    rating
    4 poles (1720 rpm)
    Average air
    consumption
    in one cycle
    720 20-40 Solid 2 - 5
    Hollow 2 - 9
    15-110 100 1/2  Hp
      1 or 3 phase
    4.6 NL
    (5kgf/cm2)

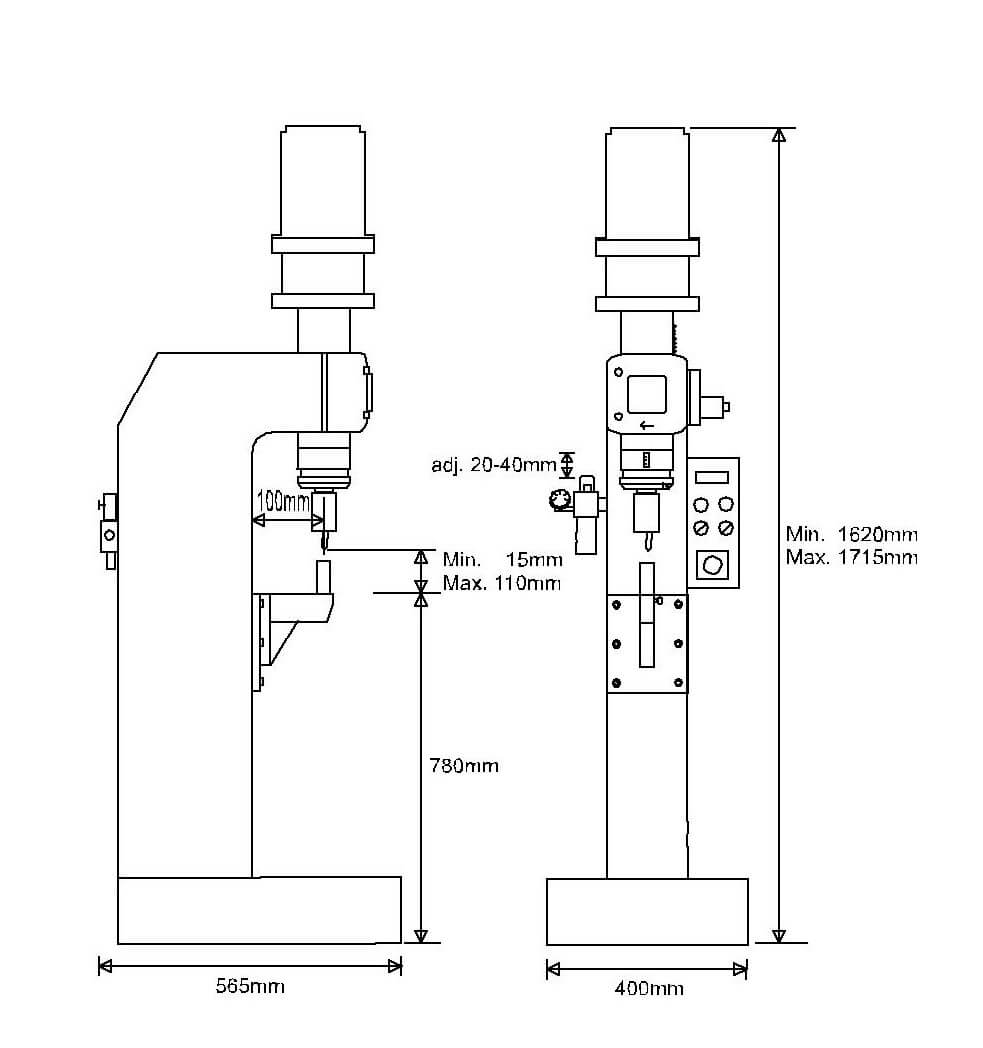

    Gauge pressure (kgf/cm2) Timer control (second) Working table LxW (mm) Dimension LxWxH (mm) N.W.(kgs) Wooden case LxWxH (mm) G.W. (kgs)
    2 - 7 0.5 - 6   565x400x1715 196 655x490x1865 245
    Principle of CLF Riveting Method
    Finished Shape of Rivet Heads and Punches
