| Max.output (kgf) | Stroke of spin head (mm) |
Riveting capacity (Mild steel rivet) (mm) |
Distance between punch and table (mm) |
Depth of throat (mm) |
AC Motor rating 4 poles (1720 rpm) |
Average air consumption in one cycle |
| 1170 | 15-35 | Solid 2 - 5 Hollow 2 - 10 |
60-140 | 150 | 1 Hp 3 phase | 6.8 NL (5kgf/cm2) |

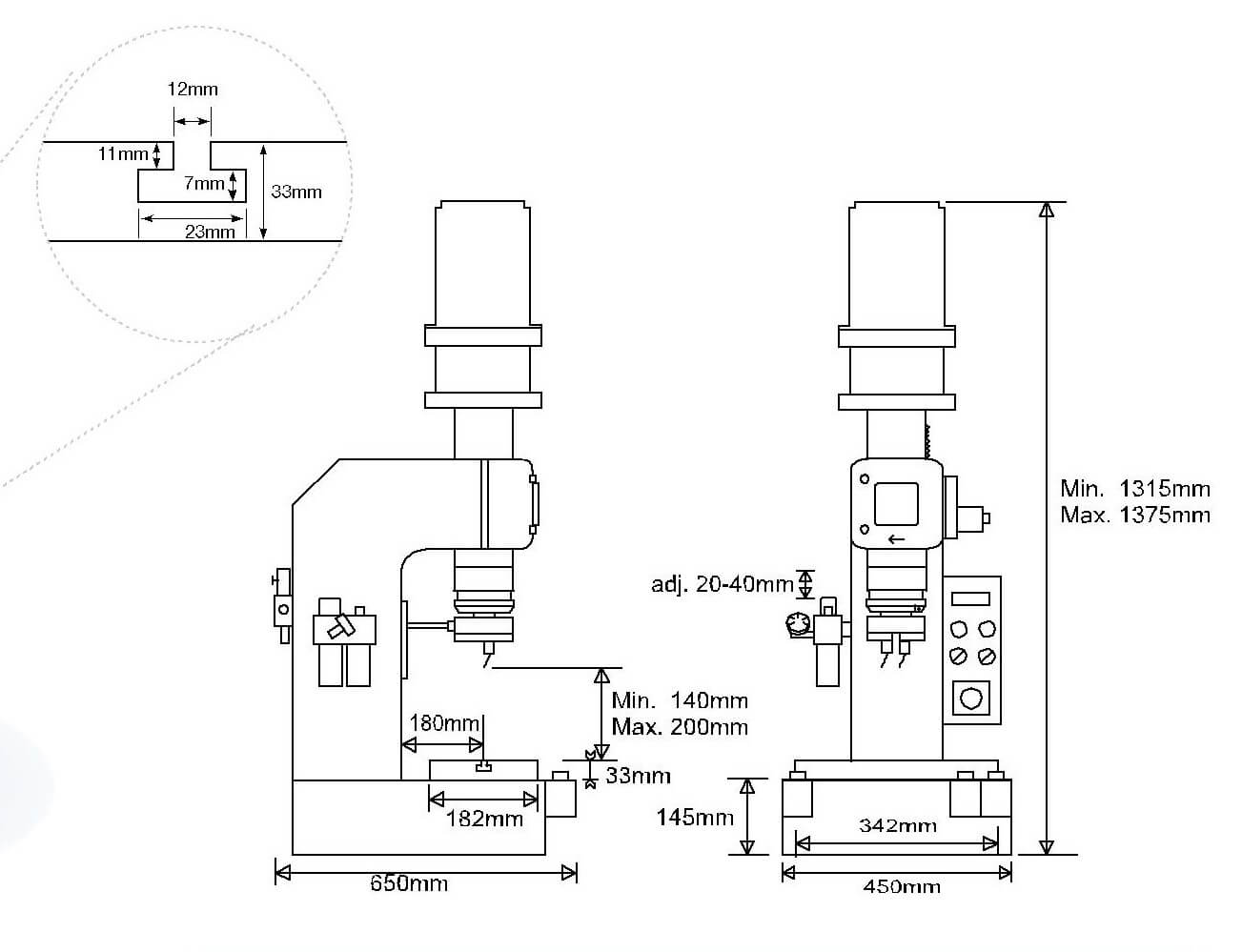

| Gauge pressure (kgf/cm2) | Timer control (second) | Working table LxW xH(mm) | Dimension LxWxH (mm) | N.W.(kgs) | Wooden case LxWxH (mm) | G.W. (kgs) |
| 2 - 7 | 0.5 - 6 | 342x182x33 | 520x400x1350 | 220 | 620x490x1550 | 270 |
